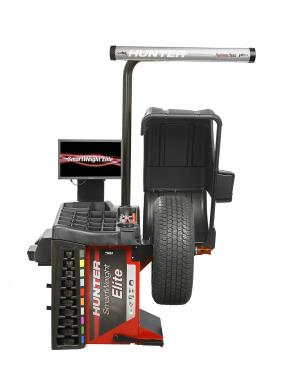

SmartWeight® Elite Balancer w/ Speed Clamp, Printer, TDC Laser
Item Number: HUNSWE23

log in for dealer pricing.





Features and Benefits

  • Touchscreen Interface
    • Intuitive interface
    • Reduces training
  • SmartWeight®
    • Even better balance
    • Maximum efficiency
    • More single weight solutions
  • Rim Condition Measurement
    • Finds bent and damaged rims
  • eCal Auto-Calibration
    • True "self-calibration"
    • No operator input required
    • Ensures accurate balance
  • Vehicle Database with TPMSpecs®
    • Displays proper mounting adaptors
    • Present TPMS info through any internet-connected shop computer
    • Presents 100+ TPMS reset procedures in a simple comprehensive, user-friendly way
  • Automatic Centering Check®
    • Reduces setup errors
  • SpeedClamp® System
    • Clamp wheels automatically
    • Save time and effort
    • Improves clamping consistency
  • HammerHead® Top-Dead-Center Laser System
    • Greater weight placement accuracy to avoid mistake
    • More single-spin balances improve productivity
    • Overhead florescent light illuminates work area
  • HunterNet
    • Balancing Push Reports
    • Allows you to view balancer usage online
    • Track wheel weight usage and savings
  • Ink Jet Printer w/ Storage Shelf
    • Print balance results
    • Sell and perform TPMS work properly and efficiently
    • Win more approvals with clear and informative printouts

Warranty

Call the Hunter Customer Service Department at 1-800-448-6848 for specific warranty information.




Product Specification

Power Requirements196-253V, 10 amp, 50/60 Hz, 1 ph (Power cable includes: NEMA 20 amp plug, L-20P)
Air Supply Requirements100-175 psi (7-12 bar)
Rim Width1.5 in. to 20.5 in (38 mm to 521mm)
Rim Diameter10 in to 30 in (254 mm to 762 mm)
ALU14 in to 40 in (356 mm to 1016 mm)
Maximum Tire Diameter44 in (1118 mm)
Maximum Tire Width20 in (508 mm)
Maximum Tire Weight175 lbs (79 kg)
Radial runout accuracy0.002 in (0.051 mm)
Imbalance Resolution±0.01 oz (0.28 g)
Placement Accuracy512 positions, ± 0.35°
Balancing Speed300 rpm
MotorProgrammable drive system and DC motor
Dimensions65 in x 88.5 in x 63.5 in (1651 mm x 2248 mm x 1613 mm)
Weight474 lbs (215 kg)
