Item Detail

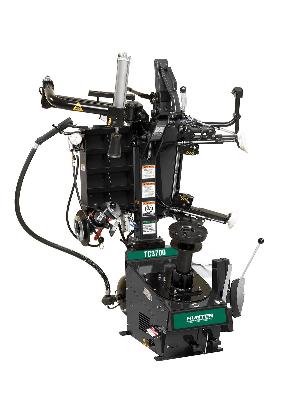

TC3700 TC with Press Arm and Side Shovel, Black
Item Number: HUNTC3715SSB

Supplied by HUNTER ENGINEERING COMPANY (see all)
ITEM IS DISCONTINUED

1-855-298-2687






Description

Black center clamping tire changer with two speed electric motor with press arm and side shovel.

Features

  • Standard tool head unit
  • New split roller design
    • For improved bottom bead demounting and bead breaking
  • Automatic locking roller arm assembly upon activation
  • Vertically locking head
  • Split bead loosening arms
  • Two-speed electric motor
  • Movable column
  • Adjustable work height
  • Side shovel
  • Press arm
  • 220V, 15A, 1ph (L6-20P Plug Provided)

Includes

  • Side shovel
  • Press arm

Warranty

Call Hunter Customer Service at 1-800-448-6848 for specific warranty information.






Product Specification

Air Supply Requirements115-145 psi (8-10 bar)
Height72 in. (1829 mm)
Depth43 in. (1092 mm)
Mount / Demount ToolPolymer Mount Head
Clamping TypeCenter w/ Quick Clamp and Cam Plate
Bead Loosening TypeRollers or Shovel (optional)
Match Mounting CapableYes
Adjustable Clamping HeightYes
Rim Diameter Range10-28 in.
Maximum Tire Diameter50 in.
Maximum Wheel Width19 in.
Drive7 and 15 rpm CW, 15 rpm CCW
Power Requirements208-230V, 15A, 60Hz, 1 ph NEMA 20 amp plug, L6-20P
Shipping Weight784 lbs.
Width43 in. (1092 mm)
