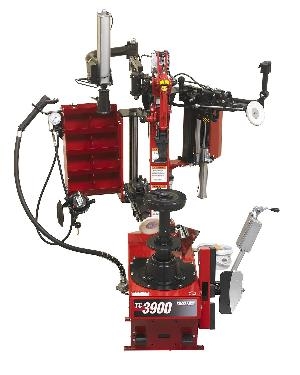

TC3900 Tire Changer w/ Side Shovel
Item Number: HUNTC3900SS

Supplied by HUNTER ENGINEERING COMPANY (see all)
ITEM IS DISCONTINUED

1-855-298-2687






Description

Hunter leverless center-clamp tire changer with side shovel.

Features

  • Bead Press Arm
    • Assists mounting difficult assemblies
  • Blast Inflation
    • Directs bursts of compressed air to easily seat the bead
  • Adjustable column
    • 12" to 28" range
  • Motor and Drive
    • 15 and 17-rpm clockwise speeds, 15 rpm counterclockwise speed
    • 850 ft-lbs. of torque
  • Leverless Mount Head
    • Positions bead without lever
    • Prevents damage to tire and rim
    • Quick and easy
  • Split Bead Roller System
    • Perform all bead breaking upright
    • Match mounting made easy
    • Easy bottom bead demounting
  • Intuitive Center Clamp and Adjustable Clamp Support
    • Simple clamping technique for all designs
    • Cam action multiplies clamping force
    • Three height positions
  • Match-Mounting Made Easy
    • Hunter's TC3900 eliminate vibration problems, reduce comebacks and increase customer satisfaction. The bead rollers safely hold the tire stationary while the rim is rotated to complete match-mounting
  • (Optional) PowerOut™ Bead Loosener
    • Ergonomic control handle makes large assembly service easy
    • Familiar side shovel design with standard protector sleeve
  • (Optional) Clamping Adapters
    • Flange Plate for Chrome-Clad and Reverse Wheels
      • Useful for chrome-clad wheels and/or reverse wheels where maximum finish protection is needed
    • Flange Plate for Chrome-Clad Wheels
      • Simplified flange plate for chrome-clad wheels only
    • 19.5" Adapter
      • Adapts large centerbore wheels to center-clamp tire changers
  • (Optional) Wheel Lift Package
    • Eases servicing of large assemblies. Allows for more careful handling of expensive wheels.

Accessories

  • HUNRP6G10A87      RP6-G1000A87 Flange Plate for Chrome-Clad and Reverse Wheels
  • HUNRP6G10A23      RP6-G1000A23 Flange Plate for Chrome-Clad Wheels
  • HUN2023411            20-2341-1 19.5" Adapter
  • HUN2029441            Wheel Lift Package

Warranty

Call the Hunter Customer Service Department at 1-800-448-6848 for specific warranty information.




Product Specification

Clamping System Rotating Speed7 & 15 CW / 15 CCW
Torque850 ft-lbs.
Electrical Requirements220V, 1 ph, 15 A
Air Pressure Operating Range115-175 P.S.I.
Tire Diameter50"
Maximum Bead Roller Opening Width21"
Diameter Range12-28"
Bead Roller Power - Each Roller4,170 lbs. @ 140 P.S.I.
Machine Weight660 lbs.
Max Space Dimensions70"W x 72"H x 55"D
Max. Bead Loosening Width with Shovel17"
Shovel Power6,600 lbs. @ 140 P.S.I.
