Description
The Hunter TCX565 conventional tabletop tire changer combines traditional design elements with advanced capabilities to service everything from simple steel wheels to challenging low-profile tires on large-diameter rims.

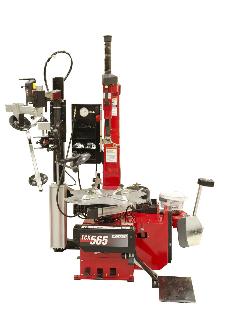

NOTE: Image shown is of the TCX565W (includes wheel lift).
Design and Features:
- Traditional Tool Head – Choice of Polymer head and Steel head with polymer insert for wheel protection
- Bead Press System – System includes multiple pressing arms and a locking lower roller disc arm to aid in clamping, lubricating, demounting and mounting difficult wheels. The wheel press arms simplify external clamping and aid in blocking and pressing stiff low-profile tire beads into deep drop-center wheels. The locking lower arm helps lift heavy tires during demounting and holds tires in place while spinning the rim to complete match-mounting service.
- Locking Lower Arm – Aids in demounting heavy and difficult tires, assists match-mounting
- Powerful 220V Motor and Unique Two-speed Drive System – Operates at a low speed with increased torque to prevent damage to wheels and tire beads when servicing tough combinations.
- Automatic Swing-Arm - Saves space over tilt-column designs. With the push of a button, the swing arm locks to preset wheel diameter and width positions to speed service of same-size wheels.
- Tabletop Design - Allows easy access to the bottom bead while ensuring rigidity for large diameter wheels.
- Twin-cylinder Tabletop Clamping System – Handles 12 to 30 inch wheels and adjusts to two work positions with 12-30" clamping range.
- PowerOut Bead Loosener – Fingertip control makes large assembly service easy, three-way adjustable shovel angle, smoothly pulls tire out of stuck beads, saves time in positioning.
Includes
- Bead Press System (BPS) including:
- Primary travel arm
- Secondary fixed arm
- Pressing cones (standard and light)
- Pressing cone extension
- Lifting disc
- 6" Clamping Jaw Extensions
- (1) Standard Bead Lever and Bead Lever Polymer Protectors
- Shovel Protectors (polymer)
- Clamping jaw protectors (polymer)
Accessories
HUN2020441 Optional Wheel Lift - Assists the operator with heavy assemblies.
Warranty
Call Hunter Customer Service at 1-800-448-6848 for specific warranty information.
NOTE: Some dimensions, capabilities, and specifications may vary depending on tire and wheel configurations or options.
