Description

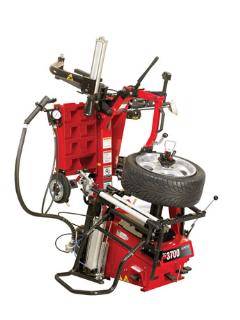

The exclusive features of Hunter's TC3700 Series tire changers operate in unison to easily and safely change the world’s toughest tires.

Features

• The center-support clamping table, self-centering quick clamp and adjustable rear column provide the flexibility to easily mount large-diameter tires up to 50 inches

• With three easily adjustable clamping heights, the TC3700 requires no flange plates for most reverse wheels and allows the operator to work at the most comfortable position

• Variable-speed, high-torque electric drive system operates at a low speed with increased torque to

  prevent damage to wheels and tire beads when servicing tough combinations or a faster speed when

  servicing less difficult combinations

• The exclusive hydraulic bead-loosening roller system gently rolls tires off or on rims. With the simple

  two-finger control, a technician can safely hold the tire with the rollers while spinning the wheel to

  complete match-mounting procedures

• The floating, articulated mounting arm and polymer mounting head follow the rim closely, reducing

  stress on the bead

• Force Multiplier Arm adds leverage when seating the mounting head and holding it down against the

  wheel

• Wheel Lift Package - Eliminates manual lifting. Polymer-coated wheel-contacts protect the
  finish on custom wheels

• Bead Press Arm pushes and holds stiff sidewalls in the drop-center position to ease

  demounting or mounting by greatly reducing stress to the bead

Includes

• HUNRP6G10A23 Force multiplier
• HUNRP6G10A11 HM bead lever with protection
• HUNRP6713421  Two wheel support plate guards for reverse wheels
• HUNRP6G10A67 28-inch bead depressor tail
• HUNRP6G100A7 Mechanical bead roller
• HUN2025021 Bead Press Arm
• Quick clamp center shaft with 90-degree lock
• V-way moveable column
• Three working heights on center support
